Beskrivelse

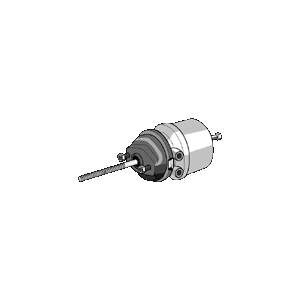

Title Extension: T20/24HF
Additional description: + mounting kit II37099
Service Portion Version (Diaphragm / Piston): Diaphragm
Spring portion Version (Diaphragm / Piston): Piston
Connection (Front cover / Intermediate flange):
Clamp Ring
Connection (Intermediate flange / Rear housing):
Bayonet
Radial port(s) orientation -
clockwise from mounting studs/hol:
0
Clamp ring ears orientation -
45
Service output at 6.5 bar &
30 mm stroke [kN]: 7.8
Spring portion output force at 30 mm stroke [kN]: 8.2
Mounting studs / holes centres [mm]: 120.7
Mounting studs length / holes depth [mm]: 38
Push rod thread length [mm]: 300
Front cover shape: Diamond
Function / description of release unit: Standard
Wading Ability: No
Gevindmål: M16x1,5
Slaglængde [mm]: 57 mm
Gevind, stempelstang: M16x1,5
Gevindmål 1: N10164
Gevindmål 2: N10164
Vægt [kg]: 8,315 kg
Brugsnumre: II37275, BX9401
