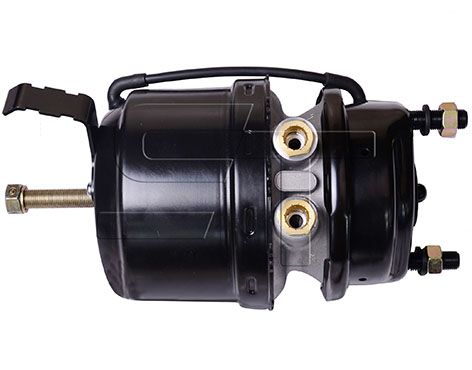

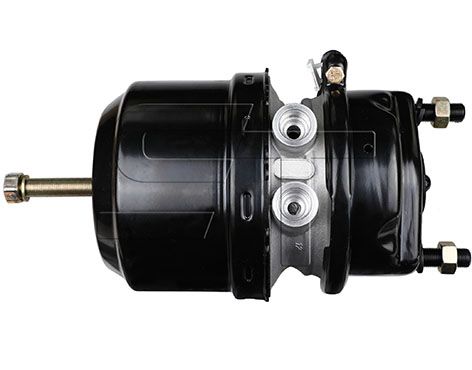

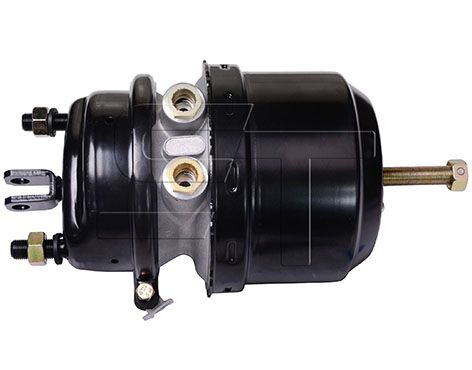

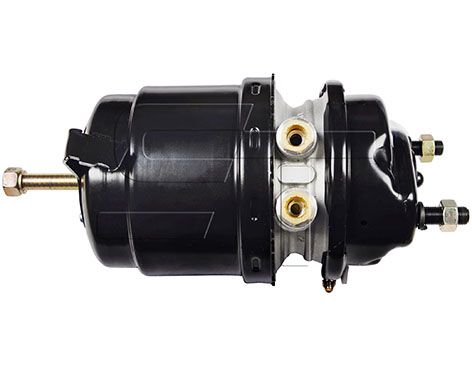

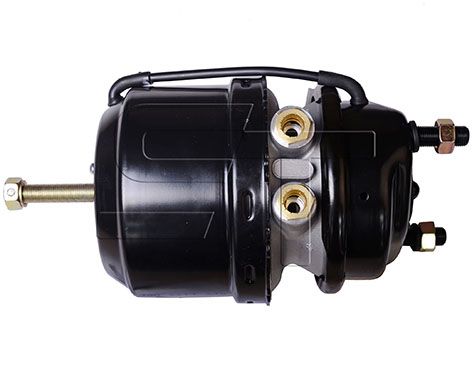

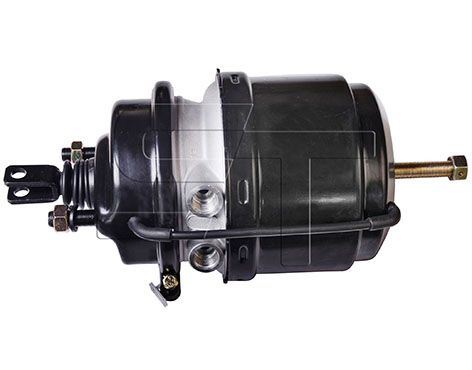

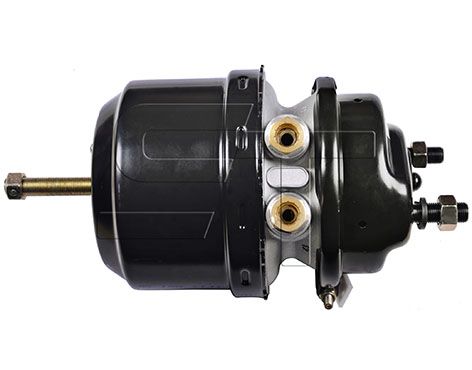

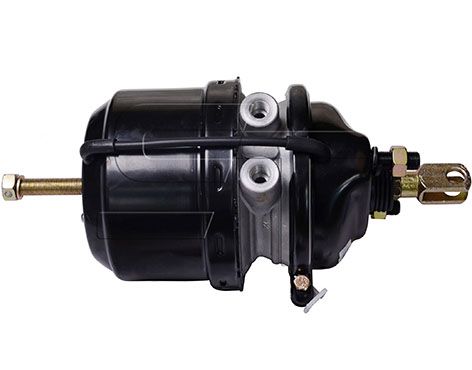

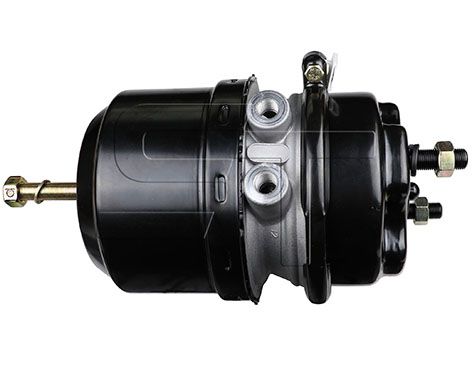

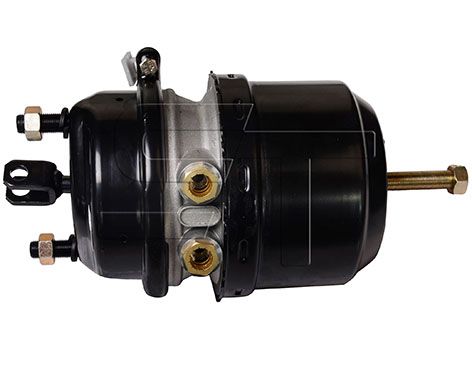

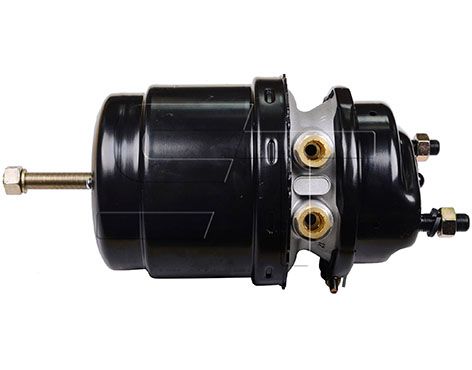

Bremsecylinder m/ håndbremse

Vægt [kg]: 8,8 kg
Tilslutningsgevind: M 22x1.5
Vigtig faktor: 27/24 IB
Stempelstanglængde [mm]: 54 mm
Bolteafstand [mm]: 120,7 mm
Udløsningstryk [bar]: 4,1 bar

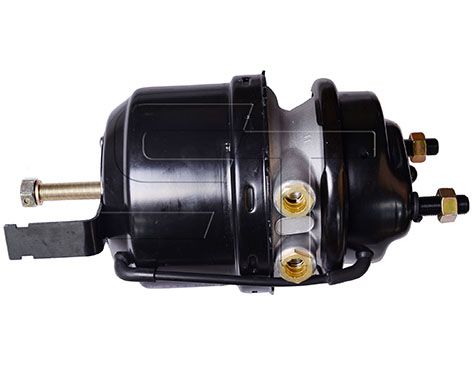

Vægt [kg]: 8,8 kg
Tilslutningsgevind: M 22x1.5 oss 232
Vigtig faktor: 27/24 IB
Stempelstanglængde [mm]: 54 mm
Bolteafstand [mm]: 120,7 mm
Udløsningstryk [bar]: 4,1 bar

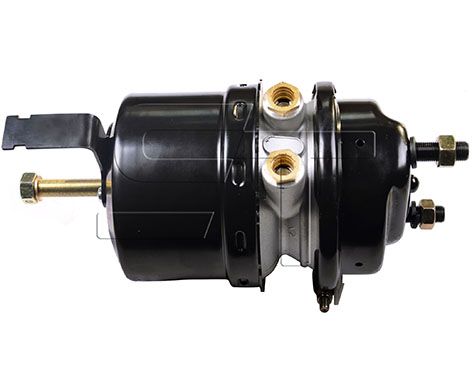

Vægt [kg]: 9,086 kg
Tilslutningsgevind: M 22x1.5
Vigtig faktor: 30/24 IB
Stempelstanglængde [mm]: 54 mm
Bolteafstand [mm]: 120,7 mm
Udløsningstryk [bar]: 4,1 bar

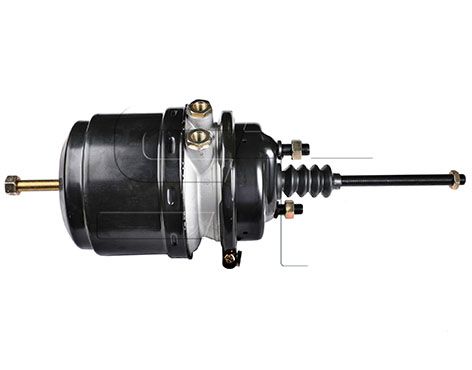

Vægt [kg]: 8,8 kg
Tilslutningsgevind: M 22x1.5
Vigtig faktor: 30/24 IB
Stempelstanglængde [mm]: 54 mm
Bolteafstand [mm]: 120,7 mm
Udløsningstryk [bar]: 4,1 bar

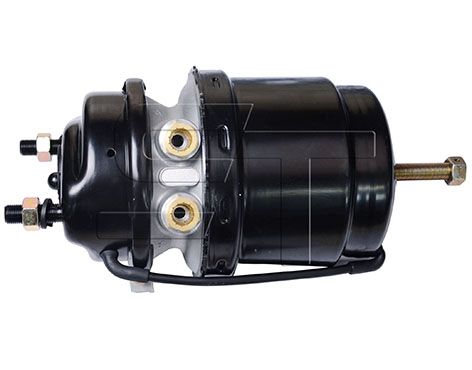

Title Extension: T20/24HFL1
Service Portion Version (Diaphragm / Piston):
Diaphragm/Piston
Spring portion Version (Diaphragm / Piston): Piston
Connection (Front cover / Intermediate flange): Crimped
Connection (Intermediate flange / Rear housing):
Bayonet
Radial port(s) orientation -
clockwise from mounting studs/hol:
45
Clamp ring ears orientation -
0
Service output at 6.5 bar &
30 mm stroke [kN]: 7.3
Spring portion output force at 30 mm stroke [kN]: 9.4
Mounting studs / holes centres [mm]: 120.7
Mounting studs length / holes depth [mm]: 43
Push rod protrusion [mm]: 115
Front cover shape: Diamond
Function / description of release unit: Short
Supplied with Port adaptors: No
Supplied with mounting nuts: No
Opposite handed version: BK8414
Wading Ability: No
TÜV Test report: Y545268
Gevindmål: M16x1,5
Slaglængde [mm]: 64 mm
Gevindmål 1: M22x1,5N10164-NG12
Gevindmål 2: M22x1,5N10164-NG12
Version: Other
Brugsnumre: K281833N00, BK8413

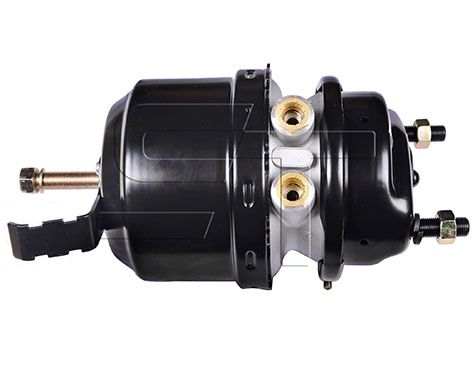

Type 24/24 - 64/64 slaglængde
HFL3
Voss ng12 gevind
BS8506

Title Extension: T24/24HFL3S
Service Portion Version (Diaphragm / Piston):
Diaphragm/Piston
Spring portion Version (Diaphragm / Piston): Piston
Connection (Front cover / Intermediate flange): Crimped
Connection (Intermediate flange / Rear housing):
Bayonet
Radial port(s) orientation -
clockwise from mounting studs/hol:
323
Clamp ring ears orientation -
0
Service output at 6.5 bar &
30 mm stroke [kN]: 9.1
Spring portion output force at 30 mm stroke [kN]: 10.9
Mounting studs / holes centres [mm]: 120.7
Mounting studs length / holes depth [mm]: 43
Push rod protrusion [mm]: 15
Front cover shape: Diamond
Function / description of release unit: Short
Supplied with Port adaptors: No
Supplied with mounting nuts: No
Opposite handed version: BK9509
Wading Ability: No
TÜV Test report: Y545268
Gevindmål: M16x1,5
Slaglængde [mm]: 64 mm
Gevindmål 1: VOSS232
Gevindmål 2: VOSS232
Version: Other
Brugsnumre: K235611N00, BK9502

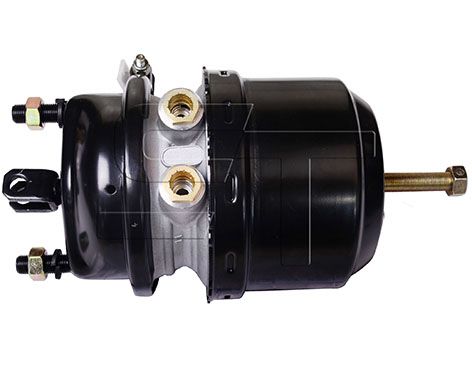

Type: Knorr-Bremse Fjederbremscylinder type 30/30 - BZ9657
Benyttes til tromlebremse på forvogn,
Slaglængde: 64 / 64 mm.
Stempelstang: M16x1,5
Monteringsbolte afstand / gevind: 120,7 mm. / m16x1,5
Port: M16x1,5 + M16x1,5
Membran: Type 30 - Stempel: Type 30 (98)

Service Portion Version (Diaphragm / Piston): Diaphragm
Spring portion Version (Diaphragm / Piston): Piston
Connection (Front cover / Intermediate flange):
Clamp Ring
Connection (Intermediate flange / Rear housing):
Bayonet
Radial port(s) orientation -
clockwise from mounting studs/hol:
90
Clamp ring ears orientation -
225
Service output at 6.5 bar &
30 mm stroke [kN]: 9.1
Spring portion output force at 30 mm stroke [kN]: 8.1
Mounting studs / holes centres [mm]: 120.7
Mounting studs length / holes depth [mm]: 43
Push rod protrusion [mm]: 15
Front cover shape: Diamond
Function / description of release unit: Standard
Supplied with Port adaptors: No
Supplied with mounting nuts: No
Wading Ability: No
Gevindmål: M16x1,5
Slaglængde [mm]: 57 mm
Gevindmål 1: M16x1,5
Gevindmål 2: M16x1,5
Version: T24/24
Vægt [kg]: 7,485 kg
Brugsnumre: II31408, BS9503

Baghjul T20/24
Voss 232-m22x1,5
slaglængde 64/64
