Bremsesystem

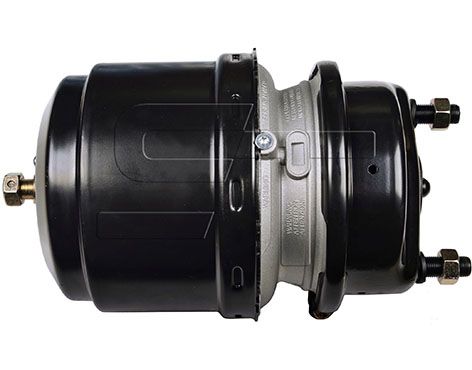

Type: Knorr-Bremse Fjederbremscylinder type 30/30 - BZ9657
Benyttes til tromlebremse på forvogn,
Slaglængde: 64 / 64 mm.
Stempelstang: M16x1,5
Monteringsbolte afstand / gevind: 120,7 mm. / m16x1,5
Port: M16x1,5 + M16x1,5
Membran: Type 30 - Stempel: Type 30 (98)

Låsecylinder for boogieaksel
BZ1614

Bremsebakke med belægning SN3620

Type: Refako / Textar

Ombytter bremsebakke med Textar belægning.
Bremsestørrelse 360 x 200 mm.
Bremsebelægning - Textar: 511.907.00.033

Stempelstanglængde [mm]: 187 mm
Mål indvendigt gevind: M22 x 1,5
Monteringsboltenes afstand [mm]: 120 mm
Monteringsside: bag
Slaglængde [mm]: 57 mm
Bremsetype: Tromlebremse
Vigtig faktor: Typ 24/24
Tillægsartikel/Yderligere info.: med monterings-/fastgørelsesmateriale

Version: 24/30" *
Boltlængde [mm]: 43 mm
Bremsetype: Skivebremse
Gevindmål: M 16x1.5
Tilslutningsgevind: M 16x1.5
Slaglængde [mm]: 65 mm
Stempelstanglængde [mm]: 15 mm

TYPE 30
flad bund
64 slag
M16x1,5 gevind

Bremsecylinder forhjul skive T24
Voss gevind
BS3515

Title Extension: T20/24HFL1
Service Portion Version (Diaphragm / Piston):
Diaphragm/Piston
Spring portion Version (Diaphragm / Piston): Piston
Connection (Front cover / Intermediate flange): Crimped
Connection (Intermediate flange / Rear housing):
Bayonet
Radial port(s) orientation -
clockwise from mounting studs/hol:
45
Clamp ring ears orientation -
0
Service output at 6.5 bar &
30 mm stroke [kN]: 7.3
Spring portion output force at 30 mm stroke [kN]: 9.4
Mounting studs / holes centres [mm]: 120.7
Mounting studs length / holes depth [mm]: 43
Push rod protrusion [mm]: 115
Front cover shape: Diamond
Function / description of release unit: Short
Supplied with Port adaptors: No
Supplied with mounting nuts: No
Opposite handed version: BK8414
Wading Ability: No
TÜV Test report: Y545268
Gevindmål: M16x1,5
Slaglængde [mm]: 64 mm
Gevindmål 1: M22x1,5N10164-NG12
Gevindmål 2: M22x1,5N10164-NG12
Version: Other
Brugsnumre: K281833N00, BK8413

Title Extension: T20/24HFL3S
Service Portion Version (Diaphragm / Piston):
Diaphragm/Piston
Spring portion Version (Diaphragm / Piston): Piston
Connection (Front cover / Intermediate flange): Crimped
Connection (Intermediate flange / Rear housing):
Bayonet
Radial port(s) orientation -
clockwise from mounting studs/hol:
45
Clamp ring ears orientation -
0
Service output at 6.5 bar &
30 mm stroke [kN]: 7.2
Spring portion output force at 30 mm stroke [kN]: 11
Mounting studs / holes centres [mm]: 120.7
Mounting studs length / holes depth [mm]: 43
Push rod protrusion [mm]: 15
Front cover shape: Diamond
Function / description of release unit: Short
Supplied with Port adaptors: No
Supplied with mounting nuts: No
Opposite handed version: BK8426
Wading Ability: No
TÜV Test report: Y545268
Gevindmål: M16x1,5
Slaglængde [mm]: 64 mm
Gevindmål 1: M22x1,5N10164-NG12
Gevindmål 2: M22x1,5N10164-NG12
Version: Other
Brugsnumre: K281836N00, BK8427

Title Extension: T20/24HFL3S
Service Portion Version (Diaphragm / Piston):
Diaphragm/Piston
Spring portion Version (Diaphragm / Piston): Piston
Connection (Front cover / Intermediate flange): Crimped
Connection (Intermediate flange / Rear housing):
Bayonet
Radial port(s) orientation -
clockwise from mounting studs/hol:
315
Clamp ring ears orientation -
0
Service output at 6.5 bar &
30 mm stroke [kN]: 7.3
Spring portion output force at 30 mm stroke [kN]: 11
Mounting studs / holes centres [mm]: 120.7
Mounting studs length / holes depth [mm]: 43
Push rod protrusion [mm]: 15
Front cover shape: Diamond
Function / description of release unit: Short
Supplied with Port adaptors: No
Supplied with mounting nuts: No
Opposite handed version: BK8427
Wading Ability: No
TÜV Test report: Y545268
Gevindmål: M16x1,5
Slaglængde [mm]: 64 mm
Gevindmål 1: M22x1,5N10164-NG12
Gevindmål 2: M22x1,5N10164-NG12
Version: Other
Brugsnumre: K281835N00, BK8426

Stempelstanglængde [mm]: 15 mm
Monteringsboltenes afstand [mm]: 120 mm
Slaglængde [mm]: 64 mm
Bremsetype: Skivebremse
Vigtig faktor: Typ 24
Tillægsartikel/Yderligere info.: med monterings-/fastgørelsesmateriale

T16 lav
