Trykluftsystem

Varenummer:

0.481.039.224.000

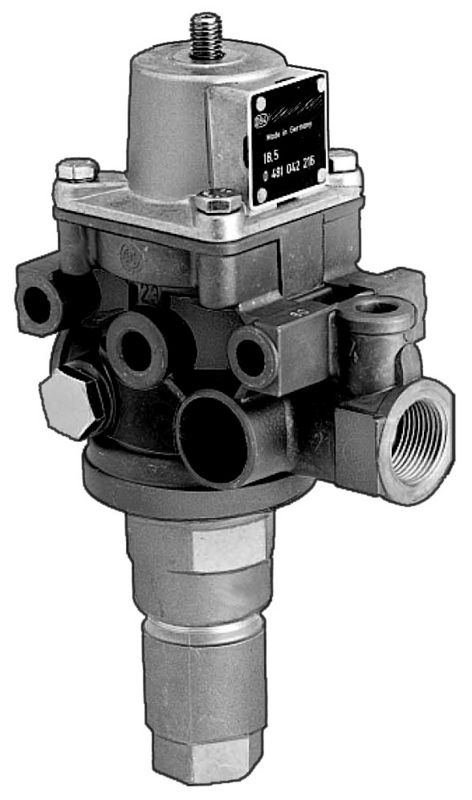

Trykregulator, trykluftsanlæg

Luftaffjedring 10,0 bar

Varenummer:

0.481.039.225.000

Trykregulator, trykluftsanlæg

10 bar

Varenummer:

0.481.039.235.000

Trykregulator, trykluftsanlæg IAM Preferred Part

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: 21: M22x1,5
Air Signal port(s) size: Not included
Safety valve pressure [bar]: 12,0
Tyre Inflator port size: Not included
Unloader cut-out pressure [bar]: 8,1
Unloader cut-in pressure [bar]: 7,5
Unloader pressure control range [bar]: 0.6+0.4
Exhaust Silencer fitted: Yes
Vægt [kg]: 0,82 kg
Brugsnumre: 0481039235000, DR3510

Varenummer:

0.481.039.253.000

Trykregulator, trykluftsanlæg

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: 21: M22x1,5
Air Signal port(s) size: Not included
Safety valve pressure [bar]: 13,5
Tyre Inflator port size: M16x1,5
Unloader cut-out pressure [bar]: 7,8
Unloader cut-in pressure [bar]: 7,2
Unloader pressure control range [bar]: 0,6+0,4
Exhaust Silencer fitted: No
Vægt [kg]: 0,88 kg

Varenummer:

0.481.039.257.000

Trykregulator, trykluftsanlæg

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: 21: M22x1,5
Air Signal port(s) size: Not included
Safety valve pressure [bar]: 13,5
Tyre Inflator port size: Not included
Unloader cut-out pressure [bar]: 8,1
Unloader cut-in pressure [bar]: 7,5
Unloader pressure control range [bar]: 0.6+0.4
Exhaust Silencer fitted: No
Vægt [kg]: 0,77 kg

Varenummer:

0.481.042.208.000

Trykregulator, trykluftsanlæg IAM Preferred Part

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: 21: M22x1,5
Air Signal port(s) size: Not included
Safety valve pressure [bar]: 20,0
Tyre Inflator port size: Not included
Unloader cut-out pressure [bar]: 16,0
Unloader cut-in pressure [bar]: 15,0
Unloader pressure control range [bar]: 1.0+1.5
Exhaust Silencer fitted: Yes
Vægt [kg]: 0,905 kg
Brugsnumre: 0481042208000, DR3416

Varenummer:

0.481.061.020.000

Styreventil, anhængeranordning IAM Preferred Part

Air Inlet port(s) size: M16x1,5
Air Delivery port(s) size: M16x1,5
Air Signal port(s) size: M16x1,5
With Integral Supply Dump: No
With internal Silencer: No
Predominance pressure [bar]: 0,0-0,2
With Differential feature: No
Number of upright circuits: 2
Number of inverse circuits: 1
Vægt [kg]: 1,635 kg
Brugsnumre: 0481061020000

Varenummer:

0.481.061.226.000

Styreventil, anhængeranordning IAM Preferred Part

Air Inlet port(s) size: M16x1,5
Air Delivery port(s) size: M16x1,5
Air Signal port(s) size: M16x1,5
With Integral Supply Dump: Yes
With internal Silencer: No
Predominance pressure [bar]: 0,1-0,3
With Differential feature: No
Number of upright circuits: 2
Number of inverse circuits: 1
Vægt [kg]: 1,875 kg
Brugsnumre: 0481061226000

Varenummer:

0.481.062.104.000

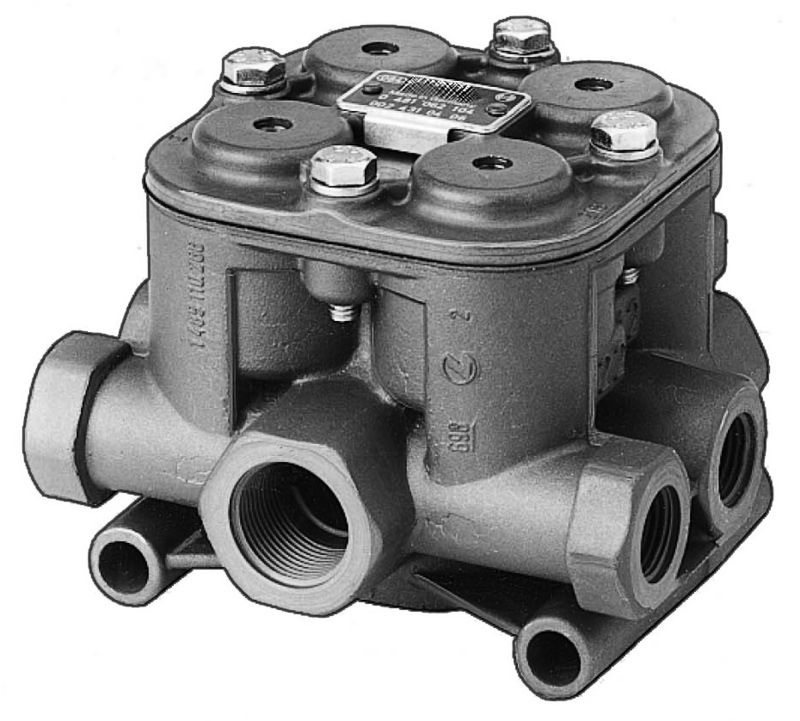

Multibeskyttelsesventil IAM Preferred Part

Air Inlet port(s) size: 1 x M22x1,5; 2 x M16x1,5
Air Delivery port(s) size: M16x1,5
Circuit 1: Non-feedback with no Bypass
Circuit 1 - Open/close pressure [bar]: 7,0
Circuit 2: Non-feedback with no Bypass
Circuit 2 - Open/close pressure [bar]: 7,0
Circuit 3: Non-feedback with no Bypass
Circuit 3 - Open/close pressure [bar]: 7,0
Circuit 4: Non-feedback with no Bypass
Circuit 4 - Open/close pressure [bar]: 7,0
Bleed-back safety feature:
Not included
Vægt [kg]: 0,886 kg
Brugsnumre: 0481062104000

Varenummer:

0.481.062.303.100

Multibeskyttelsesventil IAM Preferred Part

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: M16x1,5
Circuit 1: Non-feedback with no Bypass
Circuit 1 - Open/close pressure [bar]:
6,5 -0,3 / =4
Circuit 1 - Pressure Limiting [bar]: Not included
Circuit 2: Non-feedback with no Bypass
Circuit 2 - Open/close pressure [bar]:
Circuit 2 - Pressure Limiting [bar]: Not included
Circuit 3 - Open/close pressure [bar]:
Circuit 3 - Pressure Limiting [bar]: Not included
Circuit 4: Non-feedback with no Bypass
Circuit 4 - Open/close pressure [bar]:
Circuit 4 - Pressure Limiting [bar]: Not included
Bleed-back safety feature:
Not included
Circuits' supply:
Internal series supply from Circuits 1 and 2 to 3 and 4
With Electrical pressure sensing: No
Vægt [kg]: 0,85 kg
Brugsnumre: 0481062303100

Varenummer:

0.481.062.308.000

Multibeskyttelsesventil IAM Preferred Part

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: M16x1,5
Circuit 1: Non-feedback with no Bypass
Circuit 1 - Open/close pressure [bar]:
7,0 - 0,3 / =4,5
Circuit 1 - Pressure Limiting [bar]: Not included
Circuit 2: Non-feedback with no Bypass
Circuit 2 - Open/close pressure [bar]:
Circuit 2 - Pressure Limiting [bar]: Not included
Circuit 3 - Open/close pressure [bar]:
Circuit 3 - Pressure Limiting [bar]: Not included
Circuit 4: Non-feedback with no Bypass
Circuit 4 - Open/close pressure [bar]:
Circuit 4 - Pressure Limiting [bar]: Not included
Bleed-back safety feature:
Not included
Circuits' supply:
Internal series supply from Circuits 1 and 2 to 3 and 4
With Electrical pressure sensing: No
Vægt [kg]: 0,94 kg
Brugsnumre: 0481062308000

Varenummer:

0.481.062.310.000

Multibeskyttelsesventil

4 kreds ventil
