Trykluftsystem

Hæve-sænke ventil
Type: Knorr SV3115
Hæve/sænke ventil 1 ledet
Indgangsport 16 x 1,5 mm
Udgangsport 16 x 1,5 mm

2 cylindret Knorr
LP4812

Port(s) size: M22x1,5
Signalled: Yes
Vægt [kg]: 0,386 kg
Brugsnumre: I89242, LA4128

KNORR
AE4405
Passer op til chas.7826 på B10B
Passer til MK3 og 4 på B10M

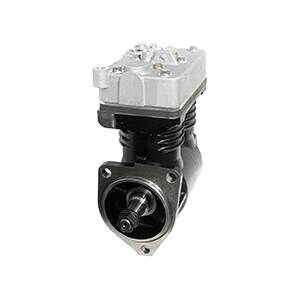

KNORR
AE4409

Title Extension: 150cc
Air Inlet port(s) size: M26x1,5
Air Delivery port(s) size: M26x1,5
Cubic Capacity: 150
Compressor Mounting: Flange
With Through Drive: No
With ESS feature: No
Lubrication: with Engine Oil
Cooling: Water
Water port(s) size: M22x1,5
Water cooled valve plate: Yes
Supplied with clutch: No
Cylinderantal: 1
Vægt [kg]: 10,155 kg

93-143
LP4814

LP4815

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: M16x1,5
Circuit 1: Feedback with Bypass
Circuit 1 - Open/close pressure [bar]:
7,0-0,3 / >4,7
Circuit 1 - Pressure Limiting [bar]: Not included
Circuit 2: Feedback with Bypass
Circuit 2 - Open/close pressure [bar]:
Circuit 2 - Pressure Limiting [bar]: Not included
Circuit 3 - Open/close pressure [bar]:
5,7-0,3 / >4,7
Circuit 3 - Pressure Limiting [bar]: Not included
Circuit 4: Non-feedback with no Bypass
Circuit 4 - Open/close pressure [bar]:
Circuit 4 - Pressure Limiting [bar]: Not included
Bleed-back safety feature:
Not included
Circuits' supply:
Internal series supply from Circuits 1 and 2 to 3 and 4
With Electrical pressure sensing: No
Vægt [kg]: 0,845 kg
Brugsnumre: II15587000, AE4427

AE4437

1 cylinder
LK3930

4-kreds beskyttelsesventil
AE4448
