Trykluftsystem

Lufttørrer
LA8646

Additional description: + mounting kit II37099
Service Portion Version (Diaphragm / Piston): Diaphragm
Spring portion Version (Diaphragm / Piston): Piston
Connection (Front cover / Intermediate flange):
Clamp Ring
Connection (Intermediate flange / Rear housing):
Bayonet
Radial port(s) orientation -
clockwise from mounting studs/hol:
0
Clamp ring ears orientation -
45
Service output at 6.5 bar &
30 mm stroke [kN]: 7.8
Spring portion output force at 30 mm stroke [kN]: 10.6
Mounting studs / holes centres [mm]: 120.7
Mounting studs length / holes depth [mm]: 38
Push rod thread length [mm]: 300
Front cover shape: Diamond
Function / description of release unit: Short
Wading Ability: No
Gevindmål: M16x1,5
Slaglængde [mm]: 57 mm
Gevind, stempelstang: M16x1,5
Gevindmål 1: N10164
Gevindmål 2: N10164
Version: T20/30
Vægt [kg]: 9,6 kg
Brugsnumre: K153953N00, BX9467

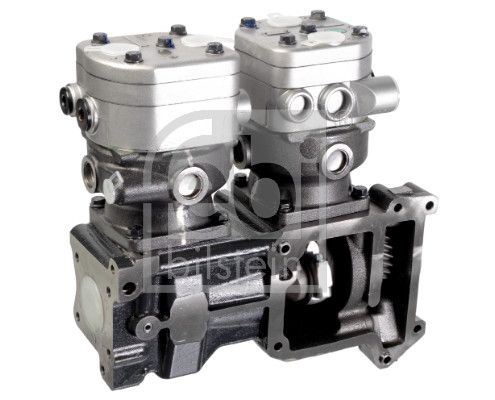

Kompressor

Type: Knorr K053603X00

720 cc.

Passer til:
- Passer til Scania Bus 4-/F-/K-/N-Series
- Passer til Scania P-/G-/R-/T-Series, 2015 ->
- Passer til Scania L-/P-/G-/R-/S-Series

14,0 bar

Hurtigudløser
Type: Knorr-Bremse KX2552/3
Port 1: M22x1,5
Port 2: M16x1,5 (x2)
Port 3: M22x1,5

Kompressor

Garanti: 2 års garanti
Nettogvægt [g]: 1910 g
Brugsnumre: AE4528

Længde [mm]: 40 mm
Yderdiameter [mm]: 40 mm

Vigtig faktor: Typ 14
Tillægsartikel/Yderligere info.: Langslagversion
