Trykluftsystem

Varenummer:

402.K044696X50

Kopieret til udklipsholder

Bremseventil, arbejdsbremse IAM Preferred Part

EBS 5

Varenummer:

402.K114439K50

Kopieret til udklipsholder

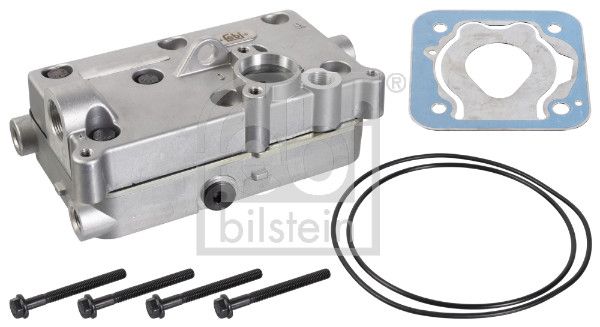

Reparationssæt, trykluftkompressor IAM Preferred Part

Vægt [kg]: 3,3 kg
Brugsnumre: K114439K50

Varenummer:

402.K116877N50

Kopieret til udklipsholder

Lufttørrer, trykluftsystem IAM Preferred Part

Lufttørrer
LA8646

Varenummer:

402.K153953N00

Kopieret til udklipsholder

Kombibremsecylinder IAM Preferred Part

Additional description: + mounting kit II37099
Service Portion Version (Diaphragm / Piston): Diaphragm
Spring portion Version (Diaphragm / Piston): Piston
Connection (Front cover / Intermediate flange):
Clamp Ring
Connection (Intermediate flange / Rear housing):
Bayonet
Radial port(s) orientation -
clockwise from mounting studs/hol:
0
Clamp ring ears orientation -
45
Service output at 6.5 bar &
30 mm stroke [kN]: 7.8
Spring portion output force at 30 mm stroke [kN]: 10.6
Mounting studs / holes centres [mm]: 120.7
Mounting studs length / holes depth [mm]: 38
Push rod thread length [mm]: 300
Front cover shape: Diamond
Function / description of release unit: Short
Wading Ability: No
Gevindmål: M16x1,5
Slaglængde [mm]: 57 mm
Gevind, stempelstang: M16x1,5
Gevindmål 1: N10164
Gevindmål 2: N10164
Version: T20/30
Vægt [kg]: 9,6 kg
Brugsnumre: K153953N00, BX9467
