Trykluftsystem

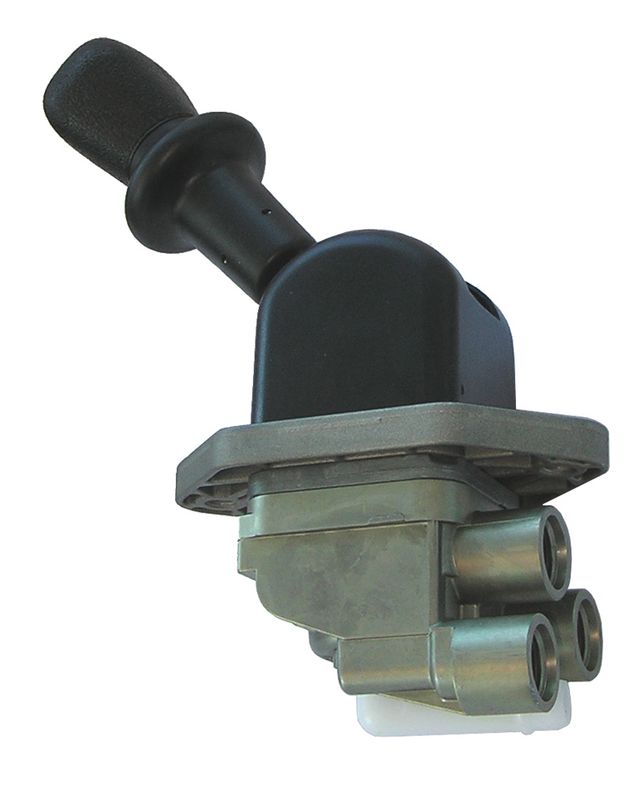

Air Inlet port(s) size: VOSS NG8 M16x1,5
Air Delivery port(s) size: VOSS NG8 M16x1,5
Maximum delivery pressure [bar]: 8
With Microswitch: No
With Test position: Yes
With Emergency Release feature: No
Exhaust Connector: Ø 12,0 mm
Ports position: Side facing
Number of upright circuits: 1
Number of inverse circuits: 2
Mounting flange: Hexagonal flange
Unlocking actuation: Pull Ring
Vægt [kg]: 0,85 kg
Brugsnumre: K153288N50

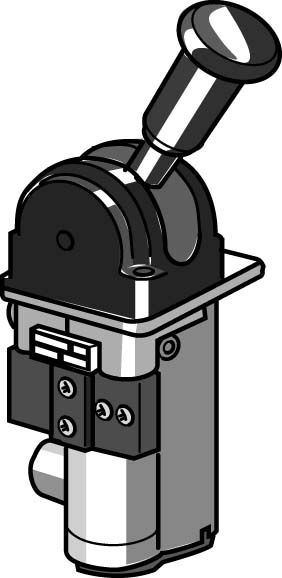

Air Inlet port(s) size: M14x1,5
Air Delivery port(s) size: M14x1,5
Maximum delivery pressure [bar]: 7.5
With Microswitch: Yes
With Test position: No
With Emergency Release feature: No
Exhaust Connector: Ø 8,5 mm
Ports position: Side facing
Number of inverse circuits: 1
Mounting flange: Hexagonal flange
Unlocking actuation: Pull Handle
Vægt [kg]: 0,712 kg
Brugsnumre: DPM84CY

Air Inlet port(s) size: M14x1,5
Air Delivery port(s) size: M14x1,5
Maximum delivery pressure [bar]: 10
With Microswitch: Yes
With Test position: No
With Emergency Release feature: No
Exhaust Connector: Ø 7,0 mm
Ports position: Side facing
Number of inverse circuits: 1
Mounting flange: Hexagonal flange
Unlocking actuation: Pull Handle
Vægt [kg]: 0,704 kg
Brugsnumre: DPM84C

Air Inlet port(s) size: M14x1,5
Air Delivery port(s) size: M14x1,5
Maximum delivery pressure [bar]: 10
With Microswitch: No
With Test position: No
With Emergency Release feature: No
Exhaust Connector: Ø 7,0 mm
Ports position: Side facing
Number of inverse circuits: 1
Vægt [kg]: 0,678 kg
Brugsnumre: DPM84AX

Air Inlet port(s) size: M14x1,5
Air Delivery port(s) size: M14x1,5
Maximum delivery pressure [bar]: 7.5
With Microswitch: Yes
With Test position: Yes
With Emergency Release feature: No
Exhaust Connector: Ø 8,5 mm
Ports position: Side facing
Number of upright circuits: 1
Number of inverse circuits: 2
Mounting flange: Rectangular flange
Unlocking actuation: Pull Handle
Vægt [kg]: 0,712 kg
Brugsnumre: DPM80B

Air Inlet port(s) size: M14x1,5
Air Delivery port(s) size: M14x1,5
Maximum delivery pressure [bar]: 7.5
With Microswitch: Yes
With Test position: Yes
With Emergency Release feature: No
Exhaust Connector: M14x1,5
Ports position: Side facing
Number of upright circuits: 1
Number of inverse circuits: 2
Mounting flange: Rectangular flange
Unlocking actuation: Pull Handle
Vægt [kg]: 0,712 kg
Brugsnumre: DPM80A

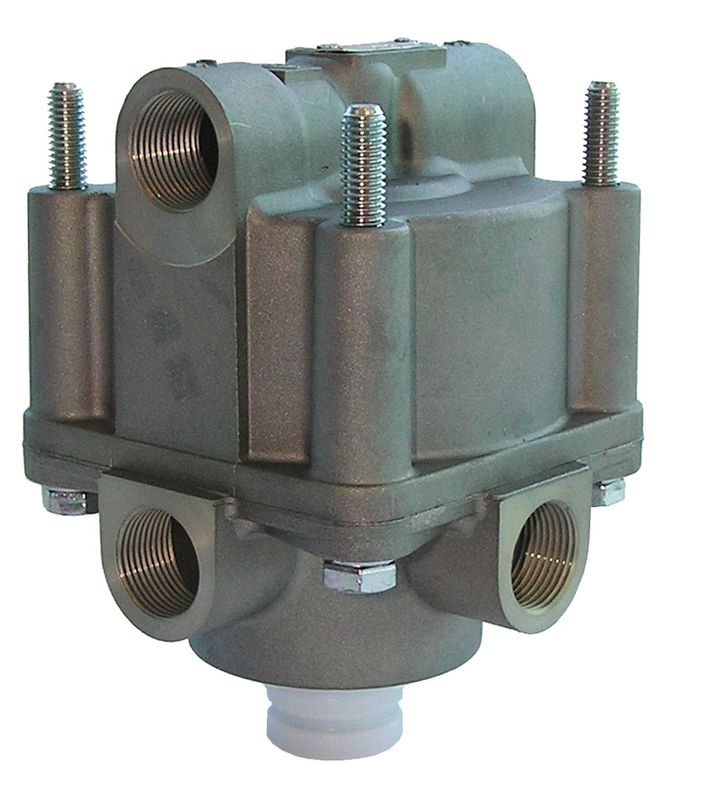

Air Inlet port(s) size: M16x1,5
Air Delivery port(s) size: M16x1,5
Air Signal port(s) size: M16x1,5
With Integral Supply Dump: Yes
With internal Silencer: Yes
Predominance pressure [bar]: 0,2 +0,3
With Differential feature: Yes
Number of upright circuits: 2
Number of inverse circuits: 1
Vægt [kg]: 2,046 kg
Brugsnumre: AC597B

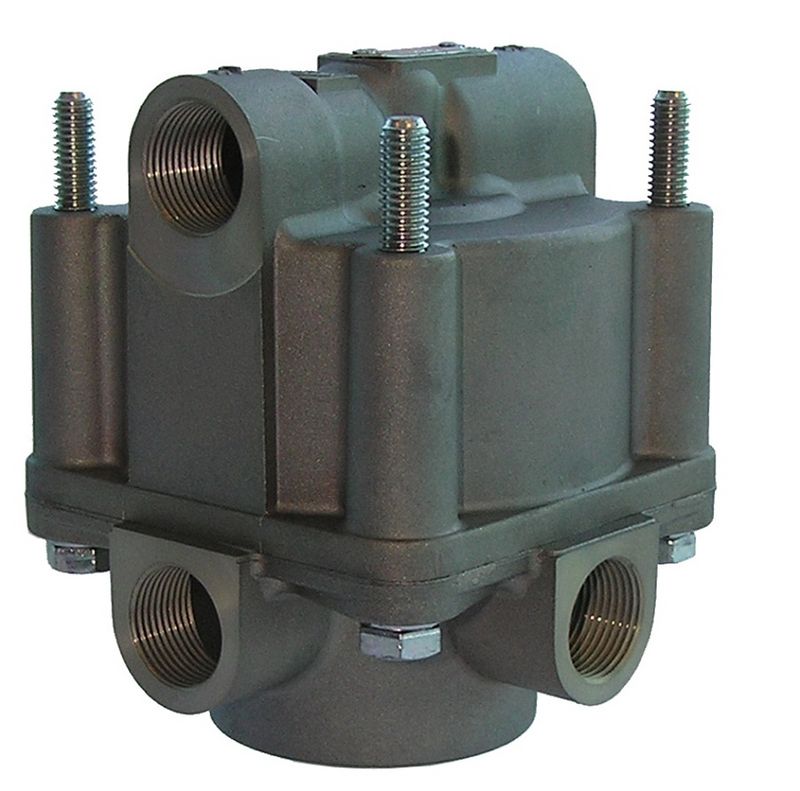

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: M22x1,5
Air Signal port(s) size: M22x1,5
With internal Silencer: No
Only for Spring Brake circuits: Yes
Valve Ratio: Boost
Application: Double for Anti Compounding
Vægt [kg]: 1,032 kg
Brugsnumre: AC586A

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: M22x1,5
Air Signal port(s) size: M22x1,5
With internal Silencer: No
Valve Ratio: 1:1
Vægt [kg]: 1,06 kg
Brugsnumre: AC586AY

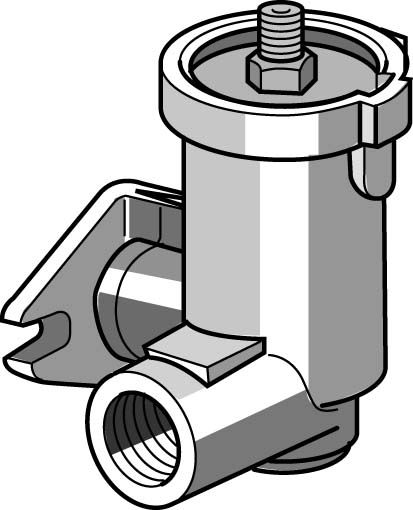

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: M22x1,5
Limited delivery pressure [bar]: 7,5 +0,3
Safety valve pressure [bar]:
Without safety valve
Pressure range [bar]: 7,5
Maximum supply pressure: 12
Vægt [kg]: 0,375 kg
Brugsnumre: AC152AA

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: M22x1,5
Limited delivery pressure [bar]: 8,0
Safety valve pressure [bar]:
Without safety valve
Maximum supply pressure: 12
Vægt [kg]: 0,37 kg
Brugsnumre: AC152LA

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: M22x1,5
Limited delivery pressure [bar]: 7,3
Safety valve pressure [bar]:
Without safety valve
Maximum supply pressure: 12
Vægt [kg]: 0,372 kg
Brugsnumre: AC152DA
