Bremsecylinder m/ håndbremse

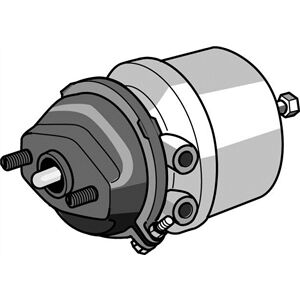

Type: Knorr Fjederbremscylinder 20/24 - BS9476
Benyttes til skivebremse på forvogn, anhænger og trailer.
Slaglængde: 64/64 mm.
Stempelstang: 15 mm.
Monteringsbolte afstand / gevind: 120, 7 mm. / m16x1, 5
Port: Voss NG12 M22x1,5 + Voss NG12 M22x1,5

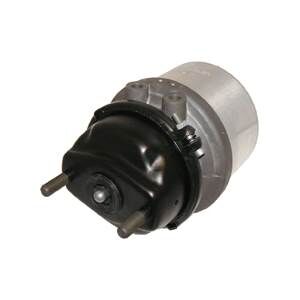

Bremsecylinder baghjul skive
T20/24HFL3
Voss gevind
BS9411

Bremsecylinder baghjul skive
T20/24HFL3
Voss gevind
BS9412

Baghjul T20/24
Voss 232-m22x1,5
slaglængde 64/64

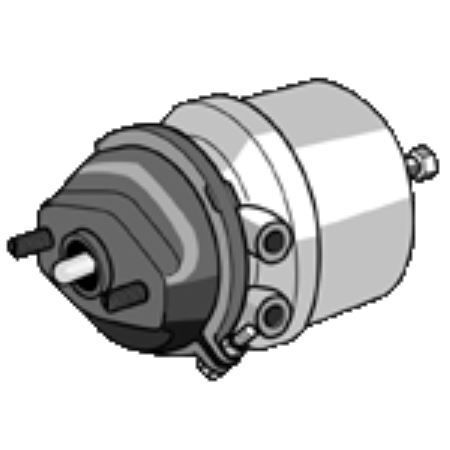

Type: Knorr Fjederbremscylinder 10/16 - BS9087
Benyttes til skivebremse på forvogn, anhænger og trailer.
Stempelstang: 15 mm.

Title Extension: T20/24HFL1
Service Portion Version (Diaphragm / Piston):
Diaphragm/Piston
Spring portion Version (Diaphragm / Piston): Piston
Connection (Front cover / Intermediate flange): Crimped
Connection (Intermediate flange / Rear housing):
Bayonet
Radial port(s) orientation -
clockwise from mounting studs/hol:
0
Clamp ring ears orientation -
Service output at 6.5 bar &
30 mm stroke [kN]: 7.3
Spring portion output force at 30 mm stroke [kN]: 9.4
Mounting studs / holes centres [mm]: 120.7
Mounting studs length / holes depth [mm]: 43
Push rod protrusion [mm]: 15
Front cover shape: Diamond
Function / description of release unit: Short
Supplied with Port adaptors: No
Supplied with mounting nuts: No
Wading Ability: No
TÜV Test report: Y545268
Gevindmål: M16x1,5
Slaglængde [mm]: 64 mm
Gevindmål 1: M22x1,5
Gevindmål 2: M22x1,5
Version: Other
Brugsnumre: K237670N00, BK9429

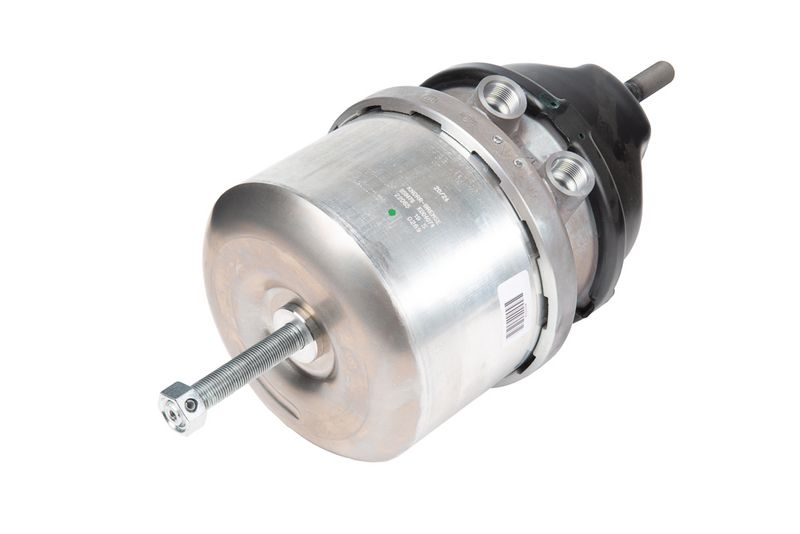

Service Portion Version (Diaphragm / Piston):
Diaphragm/Piston
Spring portion Version (Diaphragm / Piston): Piston
Connection (Front cover / Intermediate flange): Crimped
Connection (Intermediate flange / Rear housing):
Bayonet
Radial port(s) orientation -
clockwise from mounting studs/hol:
0
Clamp ring ears orientation -
Service output at 6.5 bar &
30 mm stroke [kN]: 9.1
Spring portion output force at 30 mm stroke [kN]: 8
Mounting studs / holes centres [mm]: 120.7
Mounting studs length / holes depth [mm]: 43
Push rod protrusion [mm]: 15
Front cover shape: Diamond
Function / description of release unit: Short
Supplied with Port adaptors: No
Supplied with mounting nuts: No
Wading Ability: No
TÜV Test report: Y545268
Gevindmål: M16x1,5
Slaglængde [mm]: 57 mm
Gevindmål 1: M22x1,5N10164-NG12
Gevindmål 2: M22x1,5N10164-NG12
Version: T24/24
Brugsnumre: K158628N00, BK9520

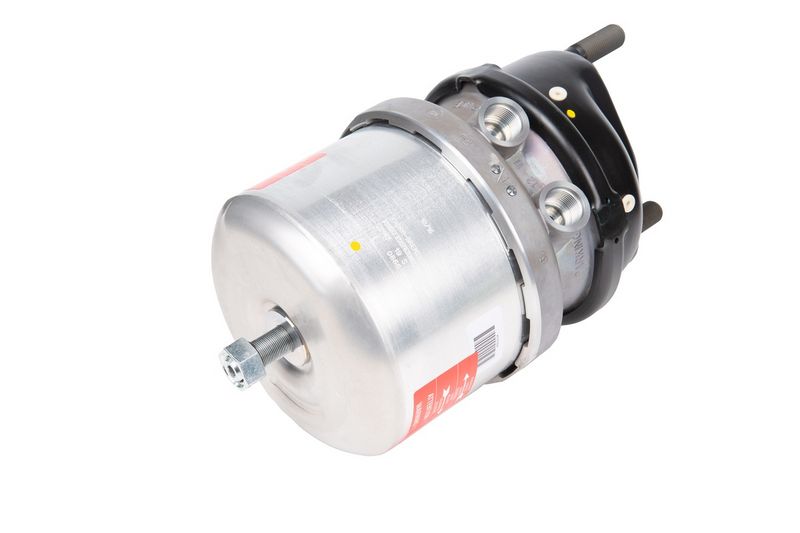

Service Portion Version (Diaphragm / Piston): Diaphragm
Spring portion Version (Diaphragm / Piston): Piston
Connection (Front cover / Intermediate flange):
Clamp Ring
Connection (Intermediate flange / Rear housing):
Bayonet
Radial port(s) orientation -
clockwise from mounting studs/hol:
333
Clamp ring ears orientation -
90
Service output at 6.5 bar &
30 mm stroke [kN]: 8.9
Spring portion output force at 30 mm stroke [kN]: 7.9
Mounting studs / holes centres [mm]: 120.7
Mounting studs length / holes depth [mm]: 43
Push rod protrusion [mm]: 15
Front cover shape: Diamond
Function / description of release unit: Standard
Supplied with Port adaptors: Yes
Supplied with mounting nuts: No
Opposite handed version: BS9505
Wading Ability: No
Gevindmål: M16x1,5
Slaglængde [mm]: 64 mm
Gevindmål 1: VOSS230
Gevindmål 2: VOSS230
Version: T24/24
Vægt [kg]: 7,26 kg
Brugsnumre: II32609000, BS9504

BS9520
24/24 57 slaglængde
Voss ng12 gevind

Trækhjul 24/24
Slaglængde 64/64
BS9502/9509
Voss 232 gevind

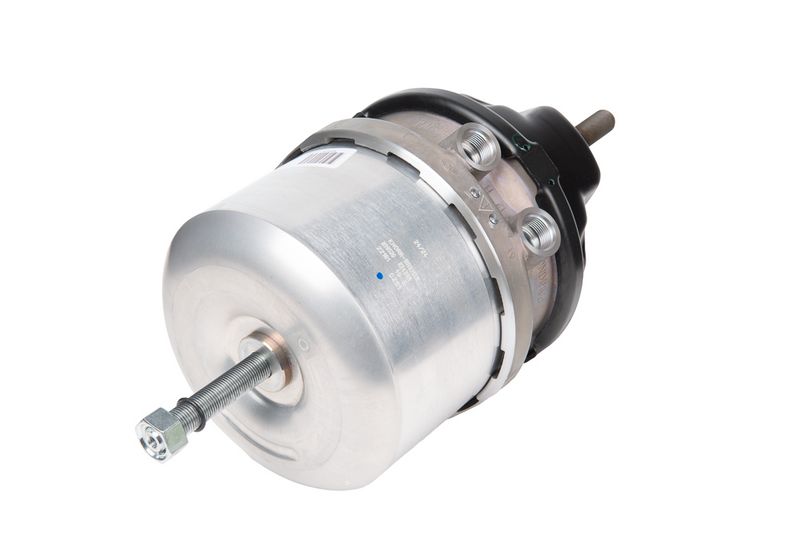

Håndbremsecylinder T50

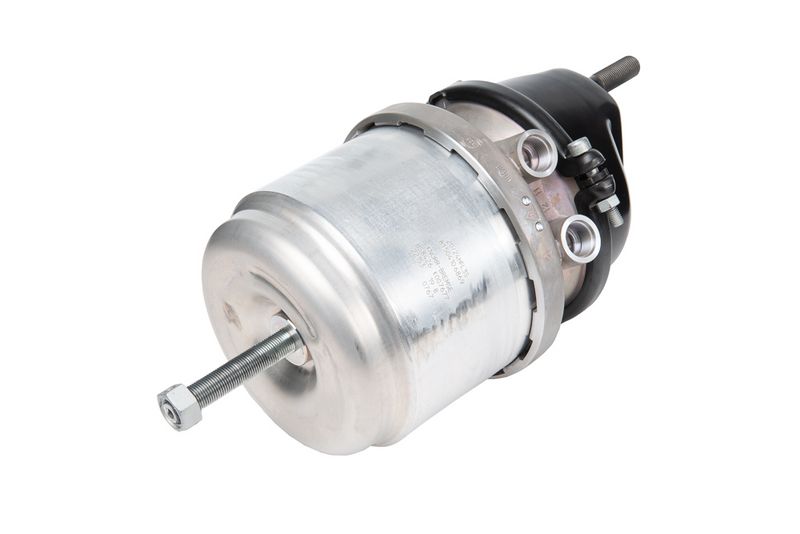

Type: Knorr-Bremse Fjederbremscylinder 16/16 - BS9398
Benyttes til skivebremse på forvogn, anhænger og trailer.
Slaglængde: 57/57 mm.
Stempelstang: 15 mm.
Monteringsbolte afstand / gevind: 120, 7 mm. / m16x1, 5
Port: M16x1, 5 + M16x1, 5
