Trykluftsystem

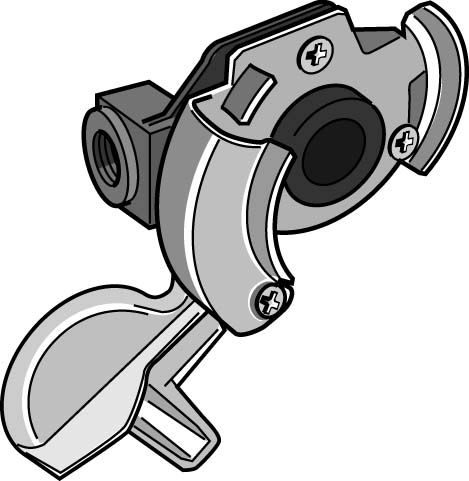

Cover Colour: Red
Port(s) size: M22x1,5
Self sealing: No
With integrated Line Filter: No
Vægt [kg]: 0,205 kg
Brugsnumre: II33263, KU1305

Vægt [kg]: 0,26 kg
Brugsnumre: II33261, AE2110

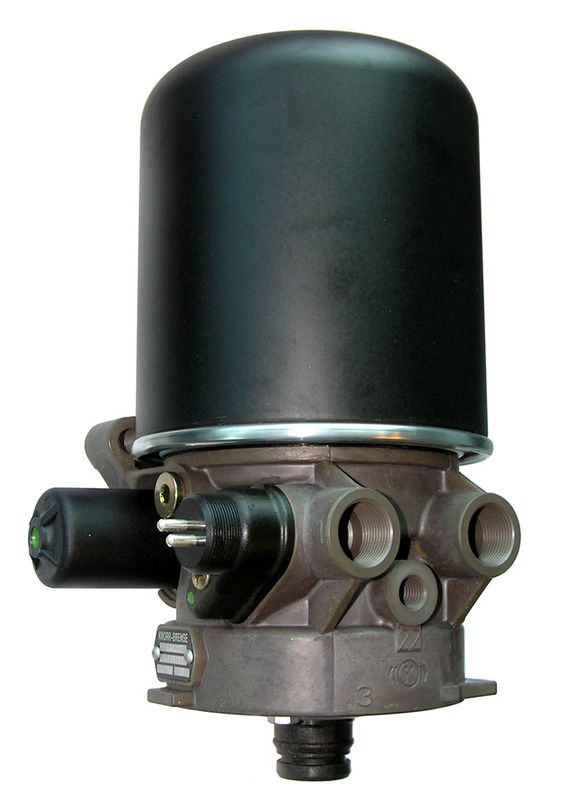

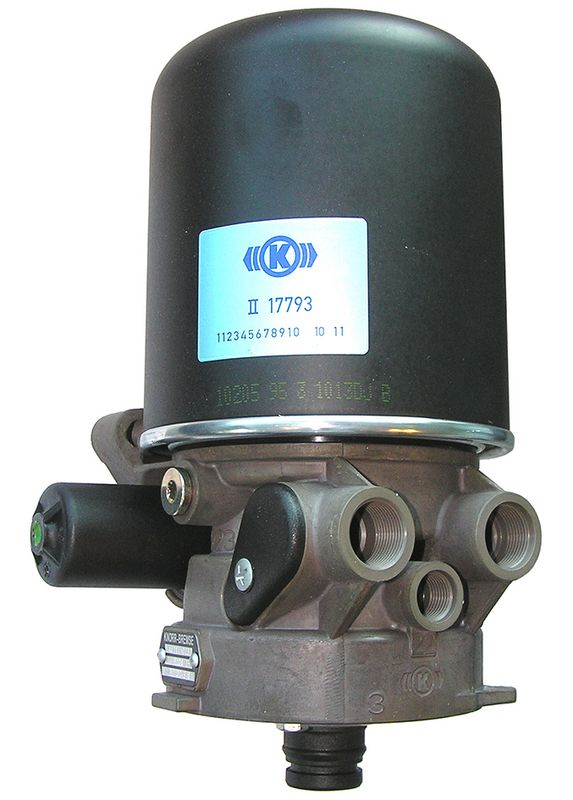

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: M22x1,5
Purge control: Reservoir; Port: M12x1,5
Safety valve pressure [bar]: 15,5
Unloader cut-out pressure [bar]: 12,5 +/-0,2
Unloader pressure control range [bar]: 1,3 +0,7
With internal Silencer: No
Exhaust Connector: Snap-on Connector
Exhaust Silencer fitted: No
Heater Connector Type: Bayonet (2 x O4,0 + 1 x O4,5)
Heater Voltage [volts]: 24
Cartridge type: Conventional
Cartridge connection type: M39x1,5 right hand thread
Vægt [kg]: 4,04 kg
Brugsnumre: II31476N50, LA8255

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: M22x1,5
Purge control: Reservoir; Port: M12x1,5
Safety valve pressure [bar]: 13,0
Unloader cut-out pressure [bar]: 8,1 +/0,2
Unloader pressure control range [bar]: 0,6 +0,4
With internal Silencer: No
Exhaust Connector: Snap-on Connector
Exhaust Silencer fitted: No
Heater Connector Type: Bayonet (2 x O4,0 + 1 x O4,5)
Heater Voltage [volts]: 24
Cartridge type: Conventional
Cartridge connection type: M39x1,5 right hand thread
Vægt [kg]: 4,058 kg
Brugsnumre: II31478N50, LA8257

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: M22x1,5
Purge control: Reservoir; Port: M12x1,5
Safety valve pressure [bar]: 13,0
Unloader cut-out pressure [bar]: 8,1 +/0,2
Unloader pressure control range [bar]: 0,6 +0,4
With internal Silencer: No
Exhaust Connector: Snap-on Connector
Exhaust Silencer fitted: No
Heater Connector Type:
Kostal M27x1,0 (2 x O4,0 + 1 x O4,5)
Heater Voltage [volts]: 24
Cartridge type: Conventional
Cartridge connection type: M39x1,5 right hand thread
Vægt [kg]: 4,09 kg
Brugsnumre: II30451N50, LA8237

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: M22x1,5
Purge control: Reservoir; Port: M12x1,5
Safety valve pressure [bar]: 13,0
Unloader cut-out pressure [bar]: 8,1 +/-0,2
Unloader pressure control range [bar]: 0,6 +0,4
With internal Silencer: No
Exhaust Connector: Ø 20,0 mm
Exhaust Silencer fitted: No
Heater Connector Type: Heater not included
Cartridge type: Conventional
Cartridge connection type: M39x1,5 right hand thread
Vægt [kg]: 3,99 kg
Brugsnumre: II30448N50, LA8228

Air Inlet port(s) size: M22×1,5
Air Delivery port(s) size: M22×1,5
Purge control: Reservoir; Port: Voss NG8 M16x1,5
Safety valve pressure [bar]: 13
Unloader cut-out pressure [bar]: 9,8+/-0,2
Unloader pressure control range [bar]: 0,8+0,6
With internal Silencer: No
Heater Connector Type: Bayonet (2 x O4,0 + 1 x O4,5)
Vægt [kg]: 4,18 kg
Brugsnumre: II19375N50, LA8206

Air Inlet port(s) size: VOSS NG12 M22x1,5
Air Delivery port(s) size: VOSS NG12 M22x1,5
Purge control: Reservoir; Port: Voss NG8 M16x1,5
Safety valve pressure [bar]: 13,0
Unloader cut-out pressure [bar]: 10,0 +/0,2
Unloader pressure control range [bar]: 1,0 +0,5
With internal Silencer: No
Exhaust Connector: Snap-on Connector
Exhaust Silencer fitted: No
Heater Connector Type:
Bayonet ISO 15170 A1 2.1.1.Ag/K3
Heater Voltage [volts]: 24
Cartridge type: OSC
Cartridge connection type: M39x1,5 right hand thread
Vægt [kg]: 4,35 kg
Brugsnumre: II19207N50, LA8210

Cover Colour: Yellow
Port(s) size: M16x1,5
Self sealing: No
With integrated Line Filter: No
Vægt [kg]: 0,21 kg
Brugsnumre: II17355, KU1311

Vægt [kg]: 0,18 kg
Brugsnumre: 234101K

Cover Colour: Red
Port(s) size: M16x1,5
Self sealing: No
With integrated Line Filter: No
Vægt [kg]: 0,21 kg
Brugsnumre: II17354, KU1310

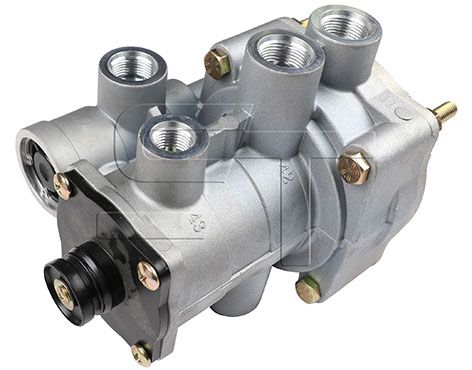

Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: 21,22,23,24: M16x1,5
Circuit 1: Feedback with no Bypass
Circuit 1 - Open/close pressure [bar]:
6.5-0.3/ >=4,5
Circuit 1 - Pressure Limiting [bar]: Not included
Circuit 2: Feedback with no Bypass
Circuit 2 - Open/close pressure [bar]:
Circuit 2 - Pressure Limiting [bar]: Not included
Circuit 3: Feedback with no Bypass
Circuit 3 - Open/close pressure [bar]:
Circuit 3 - Pressure Limiting [bar]: Not included
Circuit 4: Feedback with no Bypass
Circuit 4 - Open/close pressure [bar]:
Circuit 4 - Pressure Limiting [bar]: Not included
Bleed-back safety feature:
Controlled by Circuit 1
Circuits' supply: Internal series supply from 1
With Electrical pressure sensing: No
Vægt [kg]: 0,2 kg
Brugsnumre: K019911N00, AE4648
