Varenummer:
2001114163
Title Extension: T12Mounting tube internal diameter [mm]: 35Mounting tube end: 1,75" UNSTube length(Measured to c/l of air port) [mm]: 187Vægt [kg]: 5,995 kgBrugsnumre: K003845000, BY9233
2001114199
Title Extension: T24Push rod thread length [mm]: 300Yoke pin diameter [mm]: 14Stempelstanglængde [mm]: 300 mmVægt [kg]: 9,6 kgBrugsnumre: K002609, BX9553
2001114204
Title Extension: T24Additional description: OBCVersion (Diaphragm / Piston): DiaphragmConnection (Front / Rear cover): CrimpedAxial port(s) thread size: M16x1.5Axial port(s) plugged: NoRadial port(s) thread size: M16x1.5Radial port(s) plugged: NoRadial port(s) orientation -clockwise from mounting studs/hol:0Service output at 6.5 bar &30 mm stroke [kN]: 9.05Mounting studs / holes centres [mm]: 120.7Mounting studs length / holes depth [mm]: 43Push rod protrusion [mm]: 15Front cover shape: DiamondSupplied with mounting nuts: NoWading Ability: NoTÜV Test report: NoGevindmål: M16x1,5Slaglængde [mm]: 64 mmVersion: T24Vægt [kg]: 3,515 kgBrugsnumre: K002420, BS3532

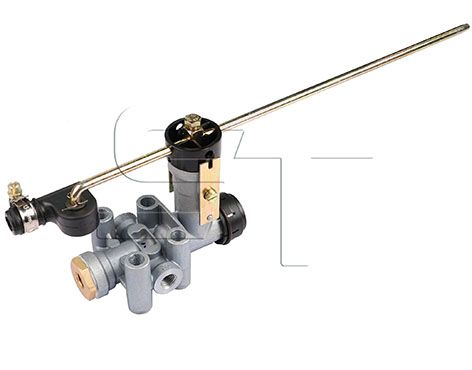

2001114246
Air Inlet port(s) size: Ø6 mmAir Delivery port(s) size: Ø6 mmAir Signal port(s) size: Not includedHeight limitation port(s) size: Not includedDatum adjustment [deg.]: Not includedHeight limitation [deg.]: Not includedFlow characteristic number: P1Lever style: FlatLever length [mm]: 161Mounting position: RightLength without lever: 221Vægt [kg]: 0,13 kgBrugsnumre: K000661, SV1491
2001114248
Air Inlet port(s) size: M22x1,5Air Delivery port(s) size: M22x1,5Backflow: withoutVægt [kg]: 0,261 kgBrugsnumre: K000651, DR4385
2001114253
Air Inlet port(s) size: M22x1,5Air Delivery port(s) size: M22x1,5Closing pressure [bar]: 4,1Backflow: withoutÅbningstryk [bar]: 5,0 barVægt [kg]: 0,26 kgBrugsnumre: K000641, DR4375
2001114251
Åbningstryk [bar]: 6,2 barVægt [kg]: 0,26 kgBrugsnumre: K000645, DR4379
2001114252
Air Inlet port(s) size: M22x1,5Air Delivery port(s) size: M22x1,5Closing pressure [bar]: 4,6Backflow: withoutÅbningstryk [bar]: 5,5 barVægt [kg]: 0,265 kgBrugsnumre: K000643, DR4377
2001114255
Air Inlet port(s) size: M22x1,5Air Delivery port(s) size: M22x1,5Closing pressure [bar]: 6,8 +/-0,2Backflow: limitedÅbningstryk [bar]: 7,8 barVægt [kg]: 0,255 kgBrugsnumre: K000632, DR4258
2001114254
Åbningstryk [bar]: 3,5 barVægt [kg]: 0,3 kgBrugsnumre: K000637, DR4371
2001114256
Air Inlet port(s) size: M22x1,5Air Delivery port(s) size: M22x1,5Closing pressure [bar]: 4,6Backflow: limitedÅbningstryk [bar]: 5,5 barVægt [kg]: 0,26 kgBrugsnumre: K000629, DR4255
2001114257
Air Inlet port(s) size: M22x1,5Air Delivery port(s) size: M22x1,5Closing pressure [bar]: 3,6Backflow: limitedÅbningstryk [bar]: 4,5 barVægt [kg]: 0,26 kgBrugsnumre: K000627, DR4253
